Filpa LPG3 -gas tanker

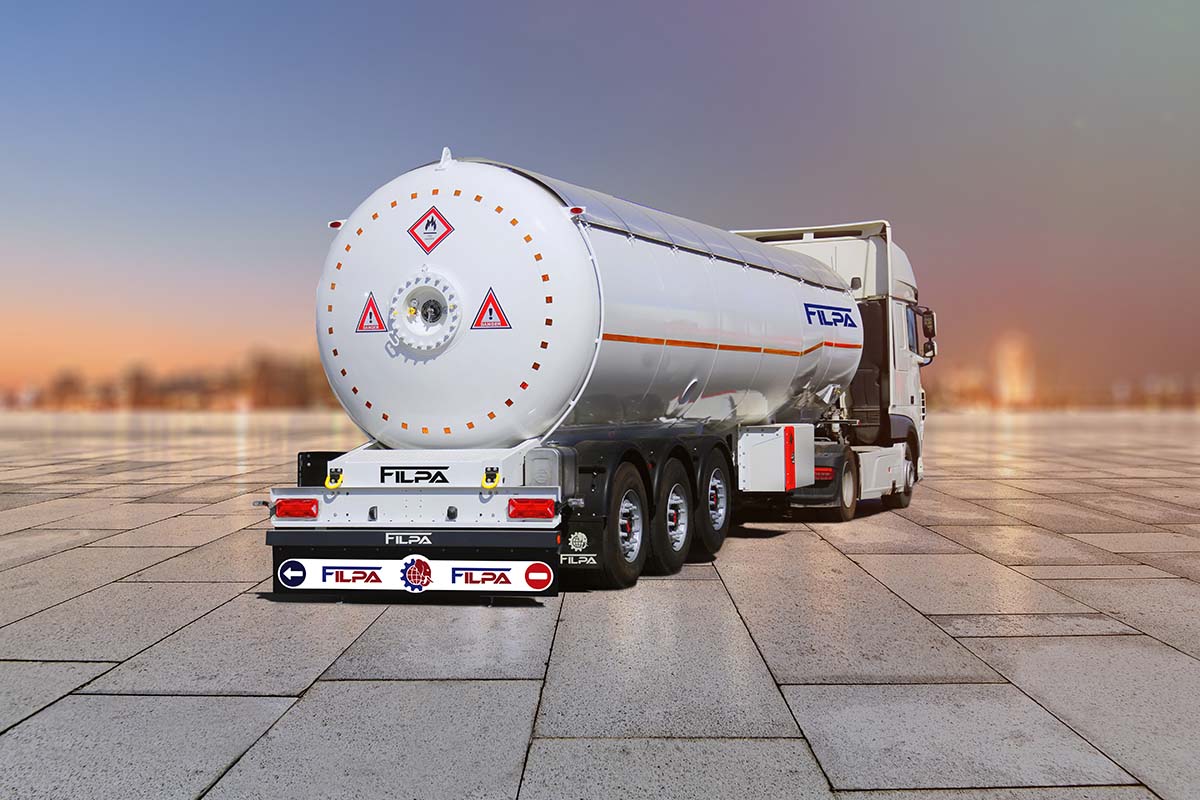

Filpa 3 AXLES LPG GAS TANKER SEMI TRAILER
Chassis Construction
Chassis and other metal pieces are made of high – strength steel (S500MC) with special automatic Co2 argon welding machine.
Tank Construction
Made of 10 and 12 mm P460NL2 and P355NL2 steel according to EU Standard Made of 14 mm A516Gr70 steel based on American standard
Braking System
EBS System (Electrical Anti Block Brake System) with RSP (Roll Stability Program) Disc and Drum, Knorr® / Wabco®(germany) Two double acting diaphragm brake chamber per axle.
Suspension and axles
3×9 ton EU standard disc brake or drum brake, front lift axle
Painting
Shot blasted, according to SA2/5 and washed by special material, painted with a layer of epoxy primer and of polyurethane final coat
Electric System
7 and 15 Pole quick release connector, Austrian Pair of 24 volts rear light, side light and alarming system from Aspock with LED Type.
Axle/ Suspension
axle with air bags cylinder air suspension system with special shock absorber Lower and Rise Capability of Trailer
Landing Legs
Static Capacity 50 Tons & Dynamic Capacity 24 Tons (JOST) Germany
King pin
2 Inch JOST king pin made in Germany
Tires
6 pieces 385/65R22.5
Rim
6 pieces rims 22.5 × 11.75 tubless

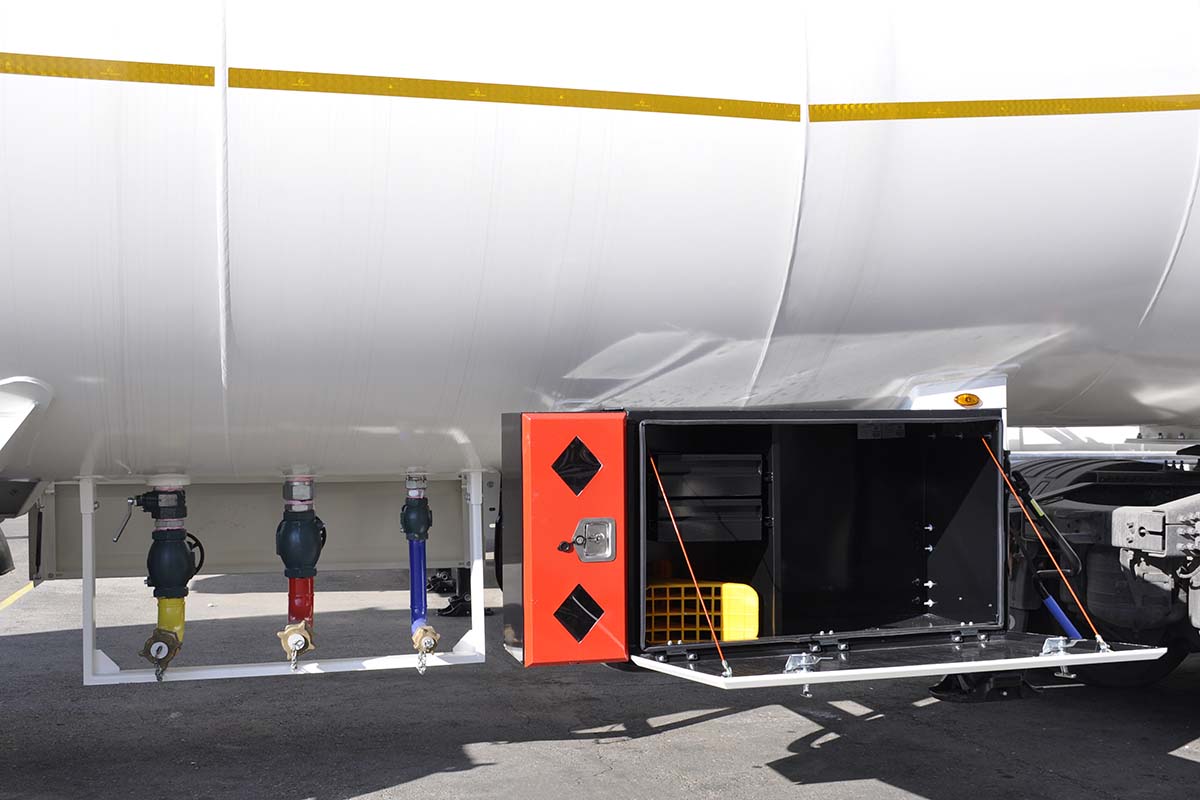

Valves
Charge and discharge valves according to National Iranian Gas Company
Trailer park lock system
Automatic front lift axle
60 Lit Water tank
Fix Rear bumper
Toolbox
Spare tire holder
Plastic chock
Holder for fire extinguisher
6 pcs mud guards and 2 mud flaps
Chemical and mechanical analysis test of plates
Visual test during work, input and output phases
Holding standard and certificate of welding inspection and dimensional control and hydrostatic
liquid penentrant, ultrasonic and radio graphic testing
Optional rims and spare Tires
King pin load
11500 kg
Outside width
2550 mm
Axle load
27000 kg
Overall height
3600mm
Tare weight
11800 kg
Overall length
12050mm
Pay load
33000 kg
Body volume
48500 LITTRE
5th wheel
1150 - 1200 mm
Chassis material
S500
Truck type
Designed for 6 wheels Trucks
Body length
11650mm
Axle spread
1310 mm
Working pressure
17.5 Bar
Wheelbase
7480 mm
Testing Pressure
25 Bar
Rear overhang
2825 mm
CAP
12mm Elliptical P355 GH
Centre of rear axle to rear edge of body
1515 mm
Shells
9mm P460 NL2 OD=2400mm & OD=2250mm
