FILPA BN3 - bulker

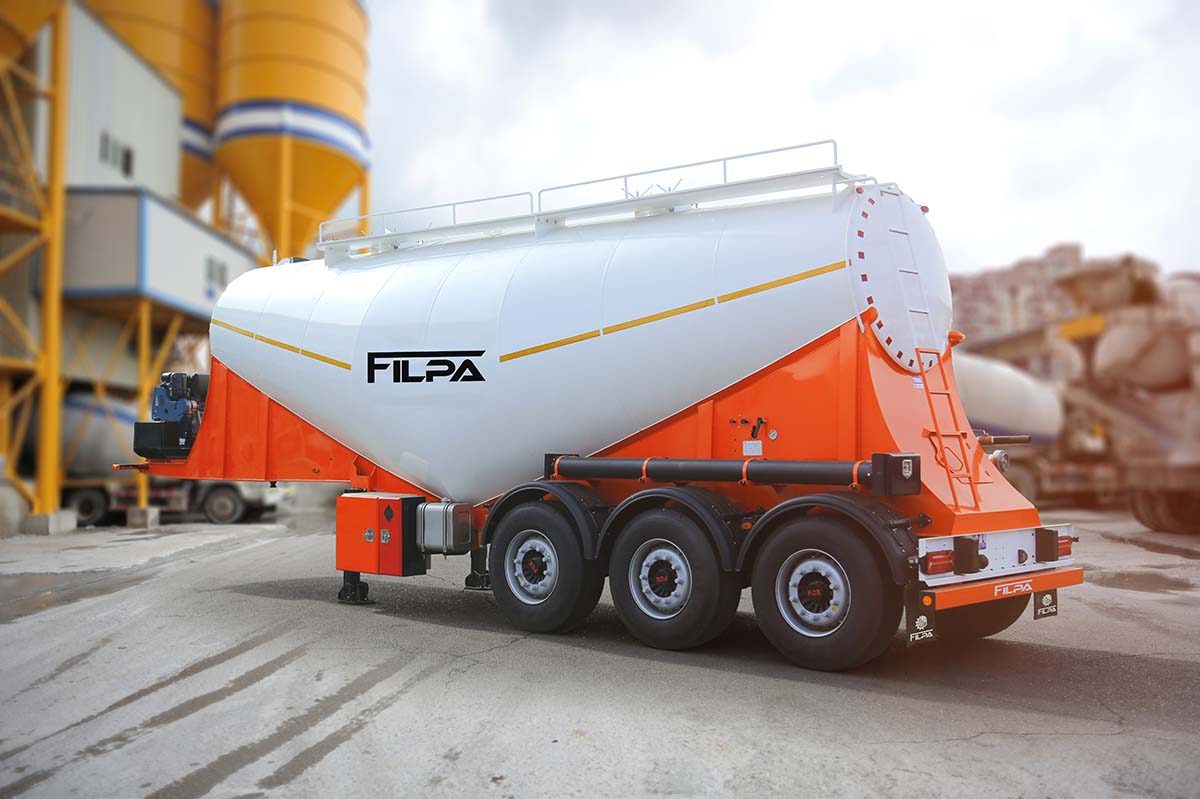

FILPA 3 AXLES CEMENT BULKER SEMI TRAILER
Chassis Construction
Chassis and other metal pieces are made of high – strength steel (S500MC) with special automatic Co2 argon welding machine.
Body Construction
Made of ST37 special 4 mm steel sheets.
Discharge system
4 inch butterfly drain valve along with 2 inch control valves and one-way alve for compressor safety.
Braking System
EBS System (Electrical Anti Block Brake System) with RSP (Roll Stability Program) Disc and Drum, Knorr® / Wabco®(germany) Two double acting diaphragm brake chamber per axle.
Suspension and axles
3×9 ton EU standard disc brake or drum brake, front lift axle
Painting
Shot blasted, according to SA2/5 and washed by special material, painted with a layer of epoxy primer and of polyurethane final coat
Electric System
7 and 15 Pole quick release connector, Austrian Pair of 24 volts rear light, side light and alarming system from Aspock with LED Type.

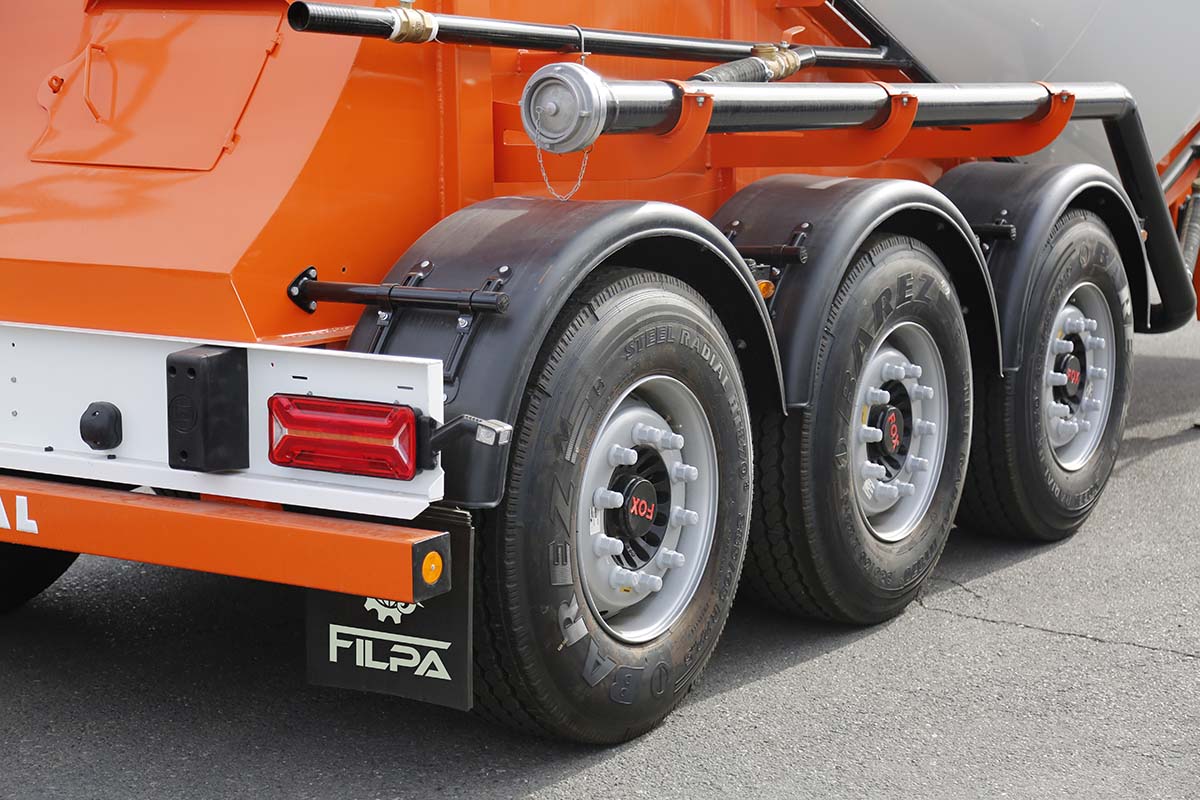

Axle/ Suspension
axle with air bags cylinder air suspension system with special shock absorber Lower and Rise Capability of Trailer
Landing Legs
Static Capacity 50 Tons & Dynamic Capacity 24 Tons (JOST) Germany
King pin
2 Inch JOST king pin made in Germany
Tires
6 pieces 385/65R22.5
Rim
6 pieces rims 22.5 × 11.75 tubless
60 Lit Water tank
Automatic front lift axle
Trailer park lock system
Holder for fire extinguisher
Spare tire holder
Plastic chock
Fix Rear bumpe
Toolbox
With upper guard and walkway
4 inch plastic discharge hose
6 pcs mud guards and 2 mud flaps
Walkway covered with corrugated sheet metal

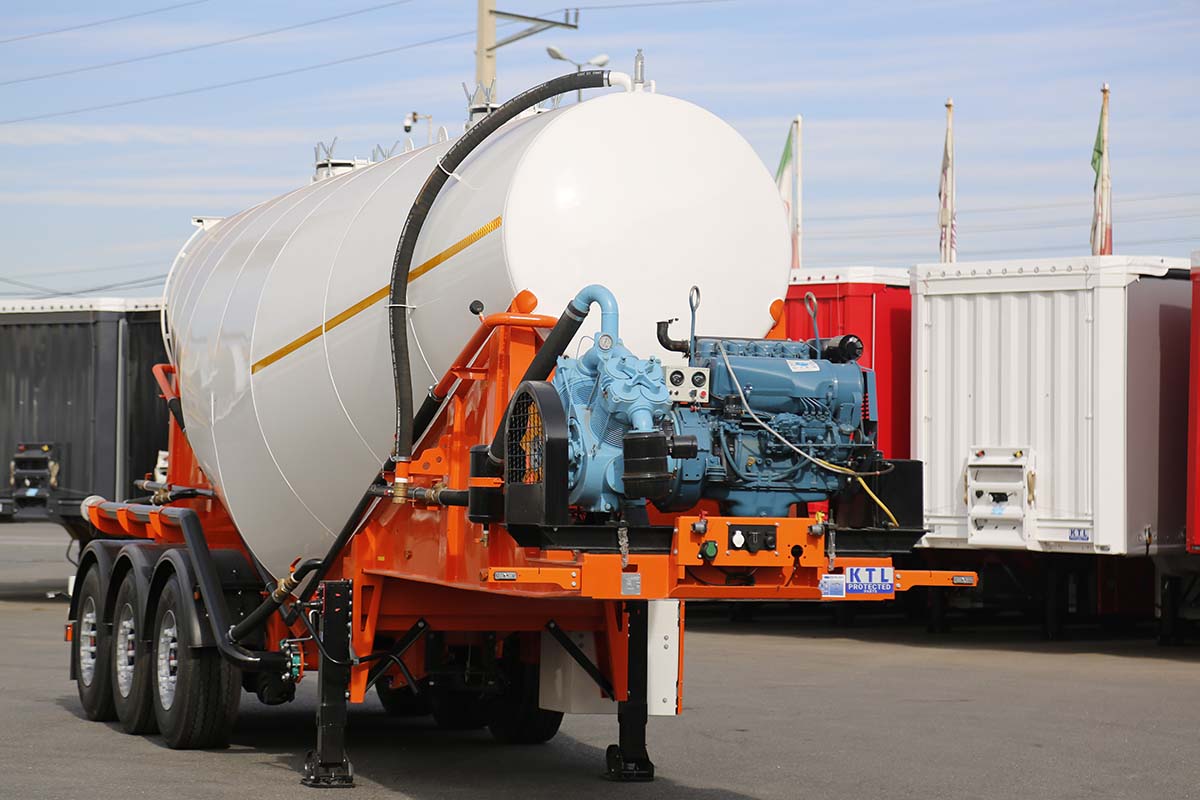

Diesel motor along with air compressor for discharge
Optional rims and spare Tires, motor and compressor
Holding standard and certificate of welding inspection and dimensional control and pressure test under 2 barco-mpany
King pin load
11500 kg
Centre of rear axle to rear edge of body
775 mm
Axle load
27000 kg
Outside width
2550 mm
Tare weight
7500 kg
Overall height
3750 mm
Pay load
33000 kg
Overall length
10200 mm
5th wheel
1150 - 1200 mm
Body volume
28 m3
Truck type
Designed for 6 wheels Trucks
Chassis materia
S500
Axle spread
1310 mm
Body shape
V type
Wheelbase
6410 mm
Body material
4mm St37
Rear overhang
2085 mm
Body length
8220 mm
