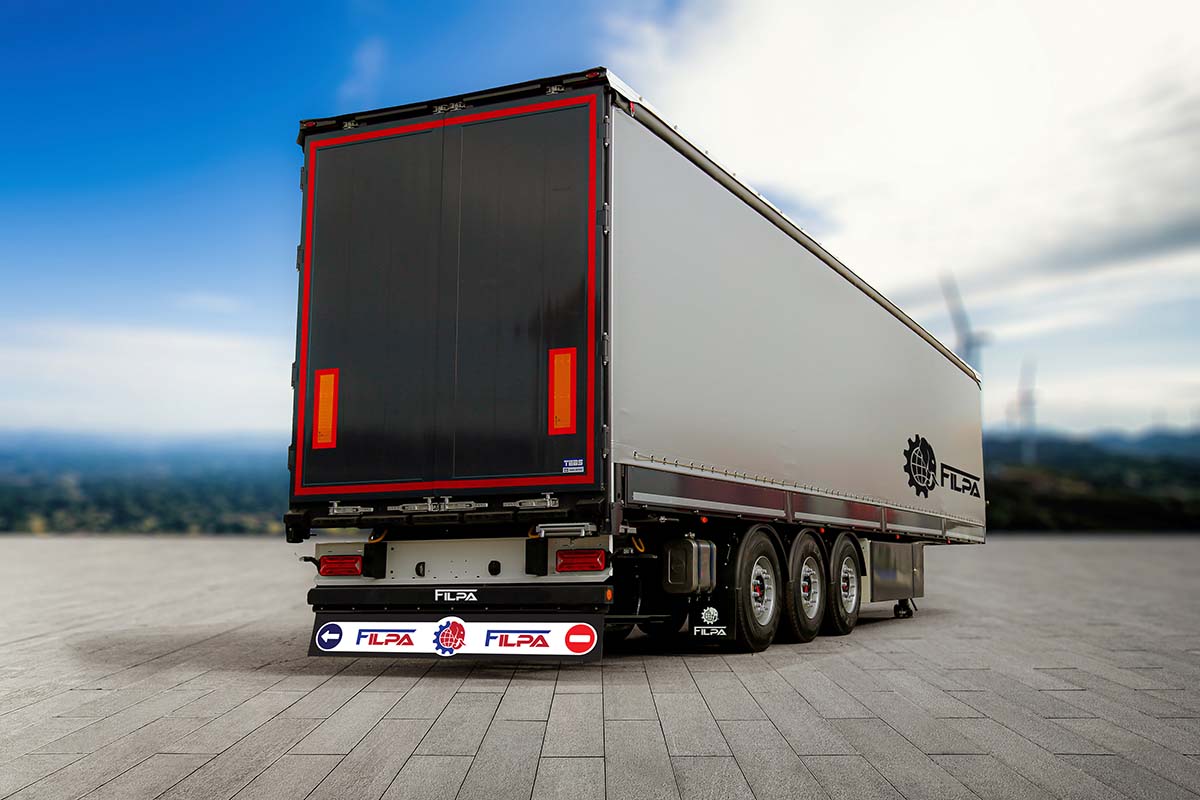

Filpa 3 AXLES CURTAIN SIDER SLIDING ROOF SEMI TRAILER
Chassis Construction
Chassis and other metal pieces are made of high – strength steel (S500MC) with special fixture automatic Co2 argon welding machine.
Body Construction
Floor 30 mm abrasion resistance plywood / sliding roof with special changeable beams / rear and side doors from special aluminum profiles/ sliding side pillacs front pillar, middle pillars and rear pillars steel are mode of (ST52-3, Qste 380Tm).
Curtain
Sliding Three Pieces Roof & Sides External Tarpaulin is produced from special polymer with high temperature resistance (-30,+70°c) and anti rupture and lasting color side and roof sliding separately.
Braking System
EBS System (Electrical Anti Block Brake System) with RSP (Roll Stability Program) Disc and Drum, Knorr® / Wabco®(germany) Two double acting diaphragm brake chamber per axle.
Suspension and axles
3×9 ton EU standard disc brake or drum brake, front lift axle
Painting
Shot blasted, according to SA2/5 and washed by special material, painted with a layer of epoxy primer and of polyurethane final coat
Electric System
7 and 15 Pole quick release connector, Austrian Pair of 24 volts rear light, side light and alarming system from Aspock with LED Type.
Axle/ Suspension
axle with air bags cylinder air suspension system with special shock absorber Lower and Rise Capability of Trailer
Landing Legs
Static Capacity 50 Tons & Dynamic Capacity 24 Tons (JOST) Germany
King pin
2 Inch JOST king pin made in Germany
Tires
6 pieces 385/65R22.5
Rim
6 pieces rims 22.5 × 11.75 tubless
Automatic front lift axle
60 Lit Water tank Mounting
Holder for fire extinguisher
Aluminum ladder (2.5 m)
Plastic Chock
Fix rear bumper
Rear door retainer
3-steps sliding ladder

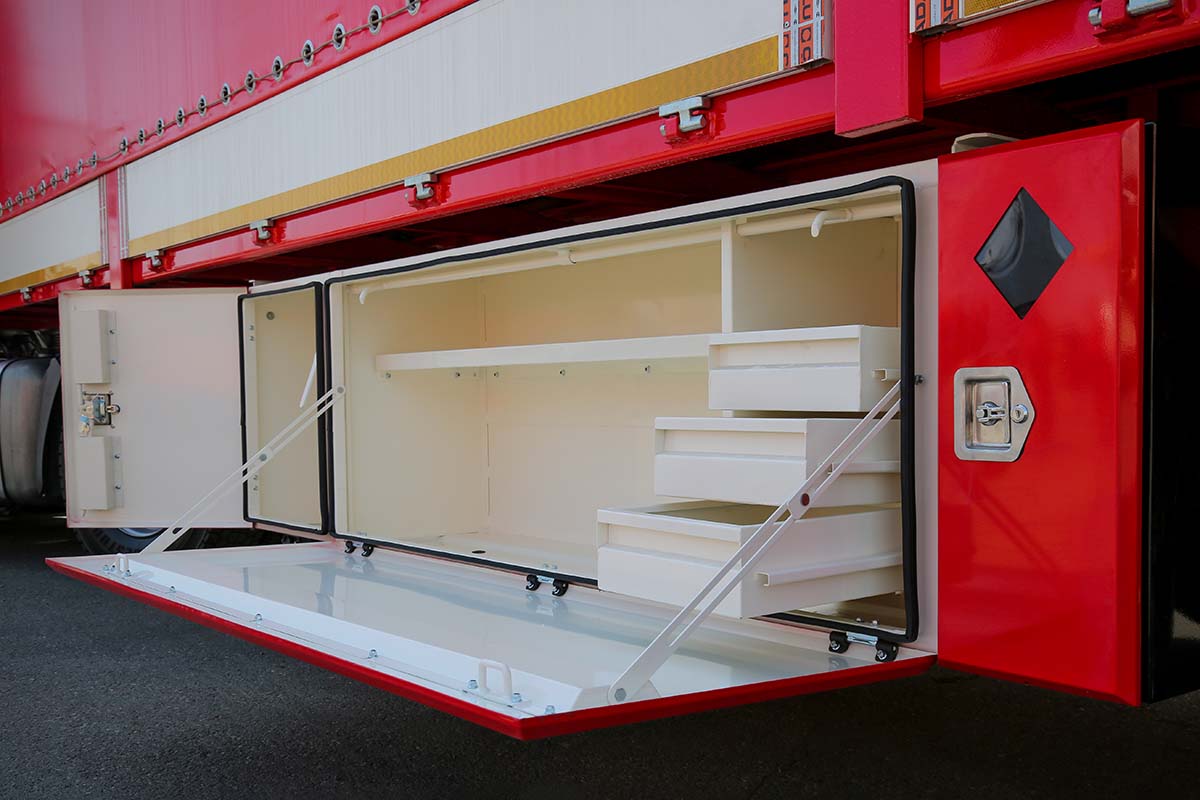

2 Toolboxes
Trailer park lock system
Galvanized spare wheel carrier
6 pcs mud guards and 2 mud flaps
For transit trailer, vertical displacement of 30cm by special manual jack
Side and roof curtain support system
removable separately
4 or 5 Optional doors, rims and spare
Tires
King pin load
11500 kg
Centre of rear axle to rear edge of body
2890 mm
Axle load
27000 kg
Outside width
2550 mm
Tare weight
7550 kg
Overall height
4050 mm
Pay load
33000 kg
Overall length
13880 mm
5th wheel
1150 - 1200 mm
Body access length
13600 mm
Truck type
Designed for 6 wheels Trucks
Body access width
2480 mm
Axle spread
1310 mm
Body access height
2720 mm
Wheelbase
7740 mm
Volume
92 m3
Rear overhang
4200 mm
